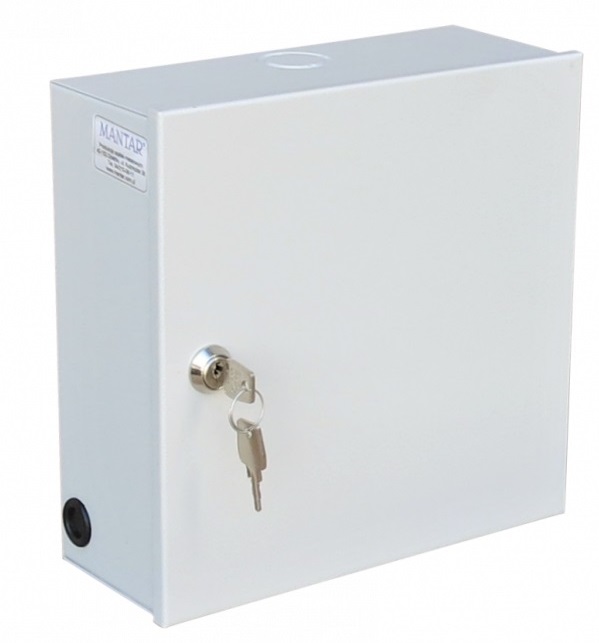

Opton Mantar Fiber Wall Mounted Distribution Frame 12 x SC Duplex PSN-25/25/10

• Wall-mounted switchboard

The offered product is a fiber optic switchboard adapted for wall mounting. It is made of 1 mm thick steel sheet and painted in light gray RAL7035. External dimensions are 255 x 255 x 101 mm.

• Frame for 12 SC Duplex adapters

Inside the switchboard there is a frame with 12 holes for mounting SC Duplex or LC Quad adapters. The frame is attached with a centrally placed screw, under it you can mount a splice tray. The switchboard has embossments that make it easier to manage the cables. Additionally, there are a total of 4 handles on the sides for winding the spare cable.

• Universal switchboard

PSN-25/25/10 PK is a universal solution designed for FTTH networks in multi-family buildings. It has 1 opening on each wall, the one in the upper part has a diameter of 19 mm, the others 29/38 mm. The switchboard will work well both in standard PON networks and in combination with an easy access cable.

MANTAR-PSN25/25/10PK

25483
