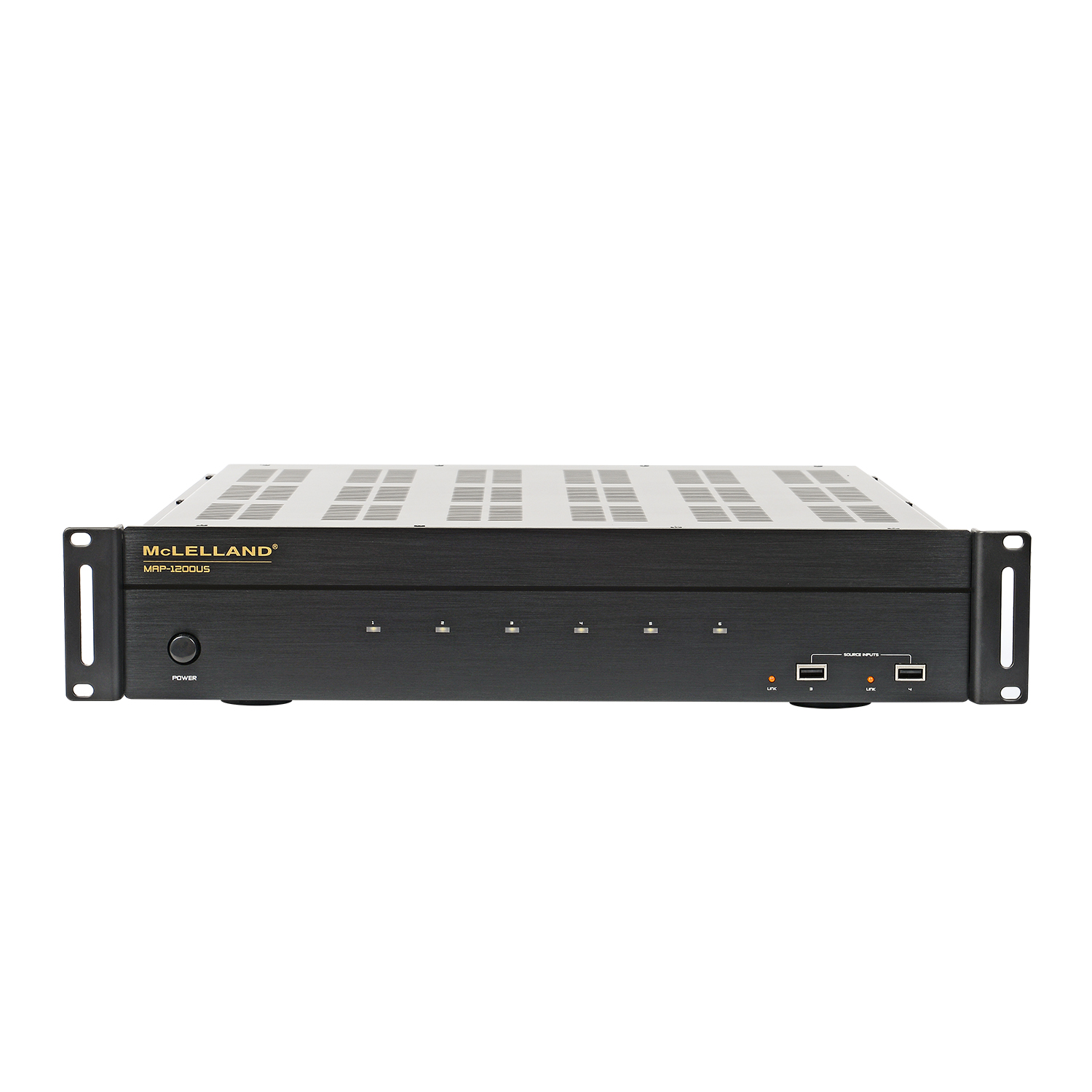

OPEN BOX McLelland MAP1200-US 6 Source / 6 Zone Multi-room Controller / Amplifier

• High efficiency more than 85% Class D amplification
• 6 Line input sources, including 2 Audio Streamers (Input 3, 4)
• USB ports for playing music files from USB Flash Drive (Input 3, 4)
• Each zone Stereo/Mono output selectable
• Enable control over Ethernet TCP/IP
• Support Control APP
• PRE-AMP output on Zone1~6
• Built-in IR receiver & IR remote controller for Source select/Volume/Treble/Bass
• 12V DC trigger output to external device when the system is power on
• 12V DC mute trigger input from the external devices
• RJ45 Ethernet port for the wired connection to the local network
• Another RJ45 Ethernet expansion port for connecting with smart TV or other device
• RS-232 port allows 2-way communication with the Home Automation system
• Expandable up to 18 Zones by additional 2 units
• 6 LEDs for 6 zones Power On, Standby and Mute
• Built in IR emitter

MAP-1200US

20628
