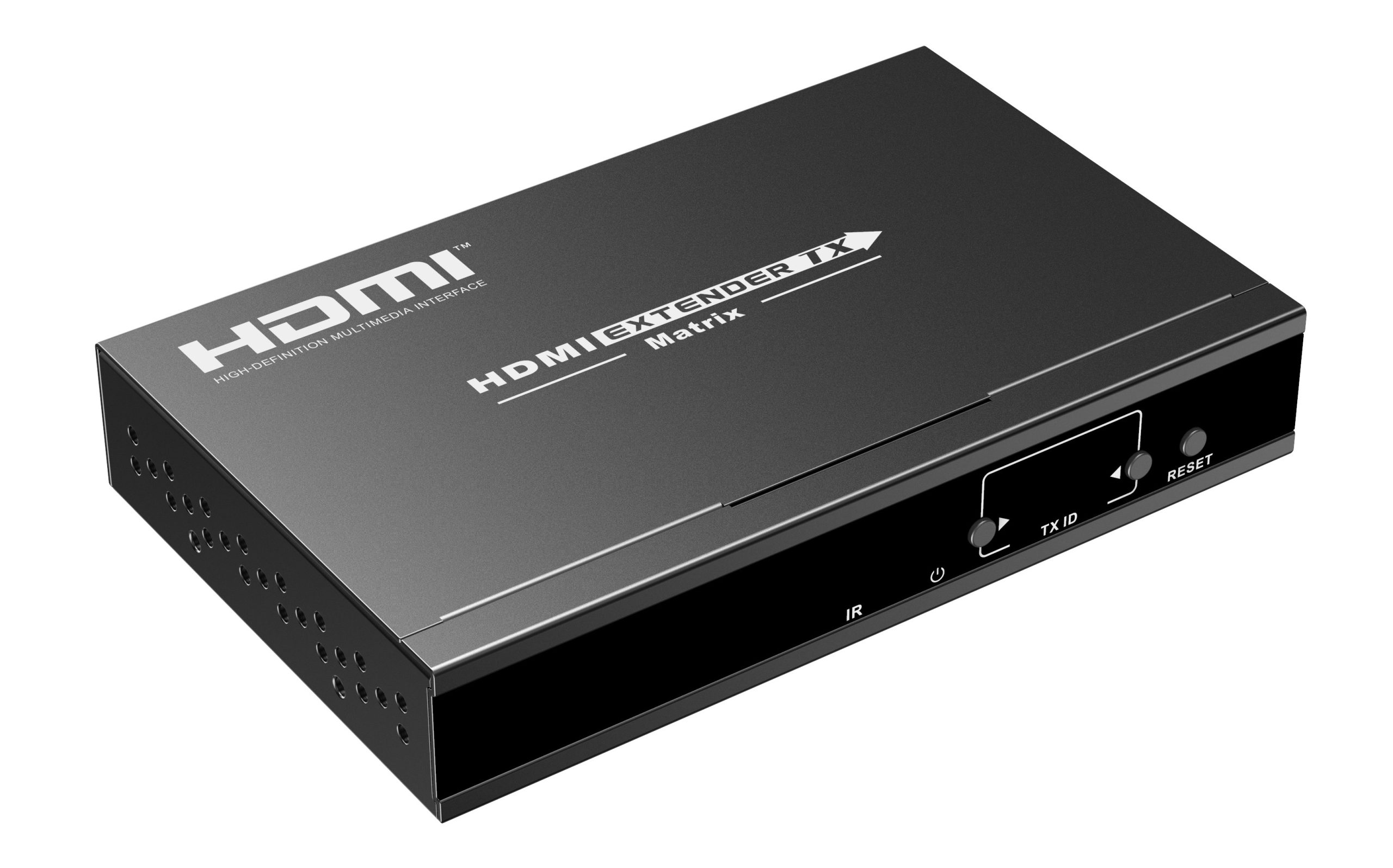

Lenkeng HDMI Matrix over IP 1080p Transmitter LKV383Matrix-TX

The Lenkeng LKV383Matrix-TX is a 1080p HDMI over IP transmitter designed to work as part of Lenkeng's HDMI Matrix over IP system. This device allows you to distribute HDMI signals over a local network (LAN), enabling flexible multi-room setups where sources can be switched and viewed on different displays.

• HDMI over IP Transmission

  • Transmits 1080p Full HD video and audio over a standard Ethernet network (LAN).

  • Supports real-time, low-latency streaming.

• HDMI Matrix Functionality

  • Works with the corresponding LKV383Matrix-RX receiver(s) to create a flexible HDMI matrix system.

  • Multiple transmitters and receivers can be connected, allowing any source to be viewed on any display (depending on the system’s capacity).

• Network-Based Distribution

  • Uses standard CAT5e/6/7 cables for transmission (up to 100m per hop).

  • Can be extended using network switches for larger setups.

• HDMI Compatibility

  • Supports HDCP 1.4 (may not work with HDCP 2.2-protected content like some 4K Blu-rays).

  • Video resolutions up to 1920×1080@60Hz.

  • Supports LPCM 2.0 audio (may not support advanced formats like Dolby Atmos).

• IR Remote Control Pass-Through

  • Some models support IR extension, allowing remote control of source devices from the display location.

• Plug-and-Play Setup

  • Typically requires minimal configuration—just connect to the network and pair with receivers.

LKV383Matrix-TX

25870
