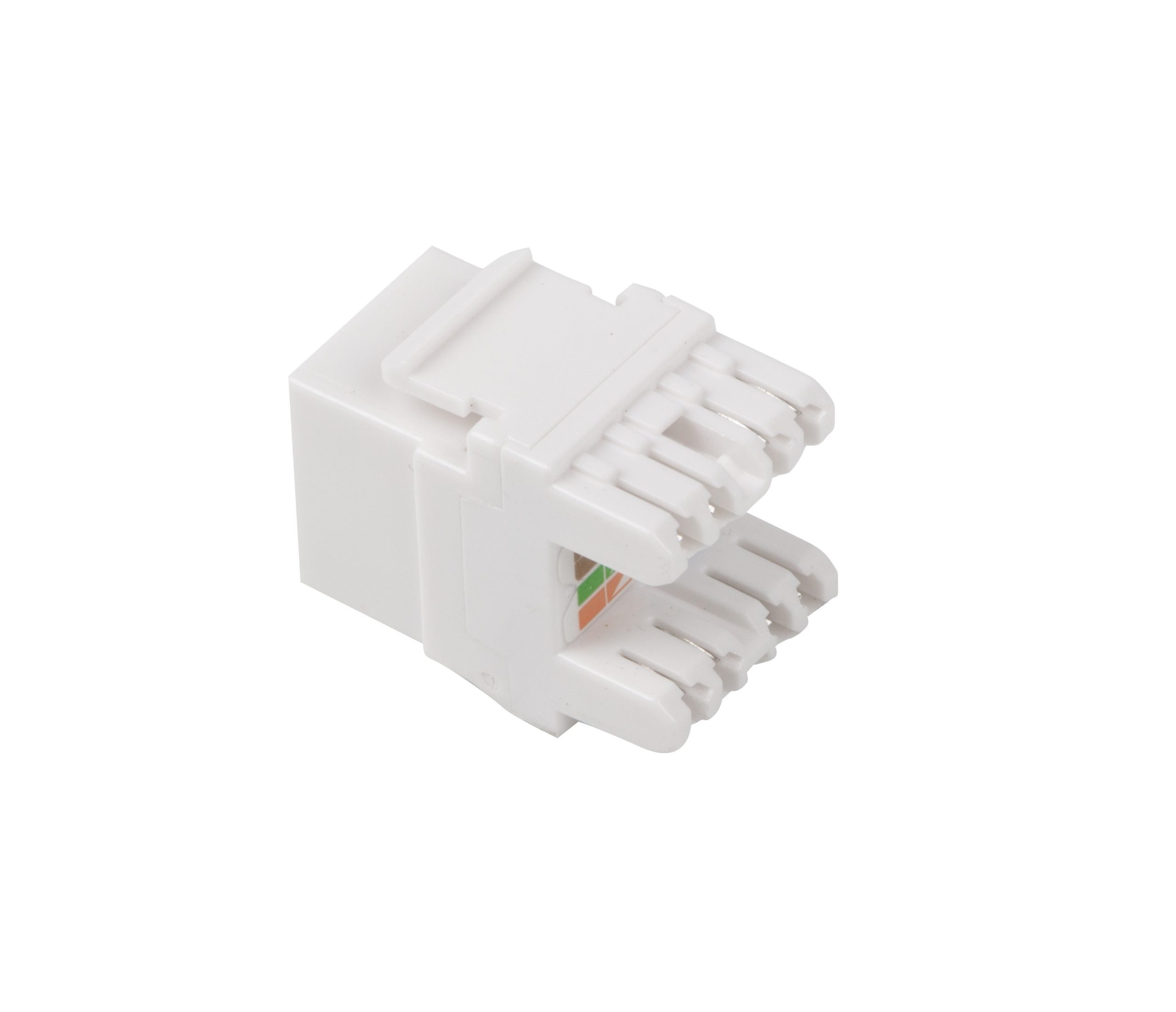

Lanberg Keystone Module RJ45 CAT6A UTP 180° KSUA-1000

UTP RJ45 cat.6a keystone socket can be installed in any adapter for keystone connectors with dimensions (height x width) 16,10×14,50mm eg in adapters for 45×45 sockets, electrical equipment frames, modular panels, thanks to which the list of applications is very wide this module. The LAN socket has an IDC connector cover and a 568A/B colored connection sequence designation.

• It is possible to connect cables in the 568B and 568A sequences.
• Universal slotted joints compatible with the LSA tool.
• Made based on PCBA printed circuit board.

• Connector:
external: 1 x female RJ45 socket (8P / 8C)
internal: LSA
• Cat.6a
• Unshielded (UTP)
• For wire or cable wires up to 0.644 mm (22 – 26 AWG)
PoE support in keystone: up to 36V

KSUA-1000

28519
