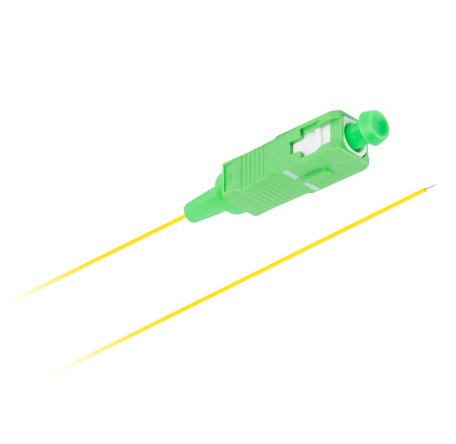

Lanberg Fiber Pigtail SC/APC SM 0.9mm 9/125 2.0m FP-SCAP

Fiber optic pigtail SM OS2 with SC/APC connector, 2m in length and 0.9mm in diameter.

SingleMode (SingleMode) pigtail with a fiber diameter of 9/125, terminated with a connector with APC (Angled Physical Contact) polishing standard and made of LSZH (Low Smoke Zero Halogen) coating. The pigtail uses G657A1 fiber standard, Semi Tight pigtail construction design.

• The pigtail is made in accordance with the current norms and standards.
• Connector type: SC
• Polishing standard: APC – ANGLED PHYSICAL CONTACT
• Fiber type: G657A1
• Type of optical fiber: single-mode (SM)
• Fiber diameter: 9/125 µm
• Cable Construction: SEMI TIGHT
• Cable diameter: 0.9 mm
• Coating: LSZH
• Insertion loss: < 0,20 dB
• Return loss: > 60 dB
• Operating temperature: -40 – 85 °C
• Minimum bend radius: 10 mm
• Color: Yellow
• Cable length: 2m

FP-SCAP-SS11-0020-YE

22252
