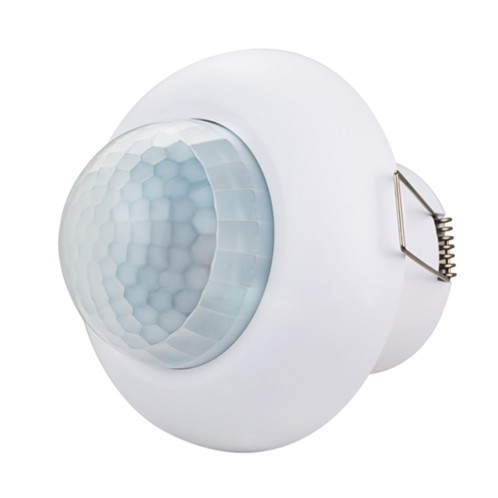

HDL Sensor Presence Reccess Mount M/SIS05.1

• KNX Presence Sensor is a multi-function sensor which contains PIR sensor, temperature sensor and brightness sensor. 4 independent logical blocks and 1 combined block are available, and each block contains 10 object outputs. Logical relations AND, OR can be set and single mode and master / slave mode are supported

• 4 independent logical blocks and 1 combined block are available, and each block contains 10 object outputs. Control targets include switches, dimming, alarm devices, etc
• 1 sensor status feedback function block, including data and status feedback for human presence detection and photo sensitive sensors, and intrusion alarms
• 2 lighting control function blocks, which support automatic and semi-automatic control, and switch control according to ambient illumination
• 1 constant brightness automatic adjustment function block can compare the ambient illumination with the set illumination value, adjust the brightness of the light, and select the curtain combination dimming
• 2 HVAC control blocks enable automatic and semi-automatic mode, HVAC open dalay and duration srttings
• Control types: Switch control, Absolute dimming control, Shutter control, Alarm control, Percentage control, Sequence control, Scene control, String(14 bytes) control, Threshold control, Logic combination control
• Logic inputs: PIR sensor status, brightness value, temperature and humidity value, and external telegrams
• 2 logical relations: AND, OR
• 2 working modes: Single mode and master / slave mode
• The logic validity can be set by external telegram

M/SIS05.1

25696
