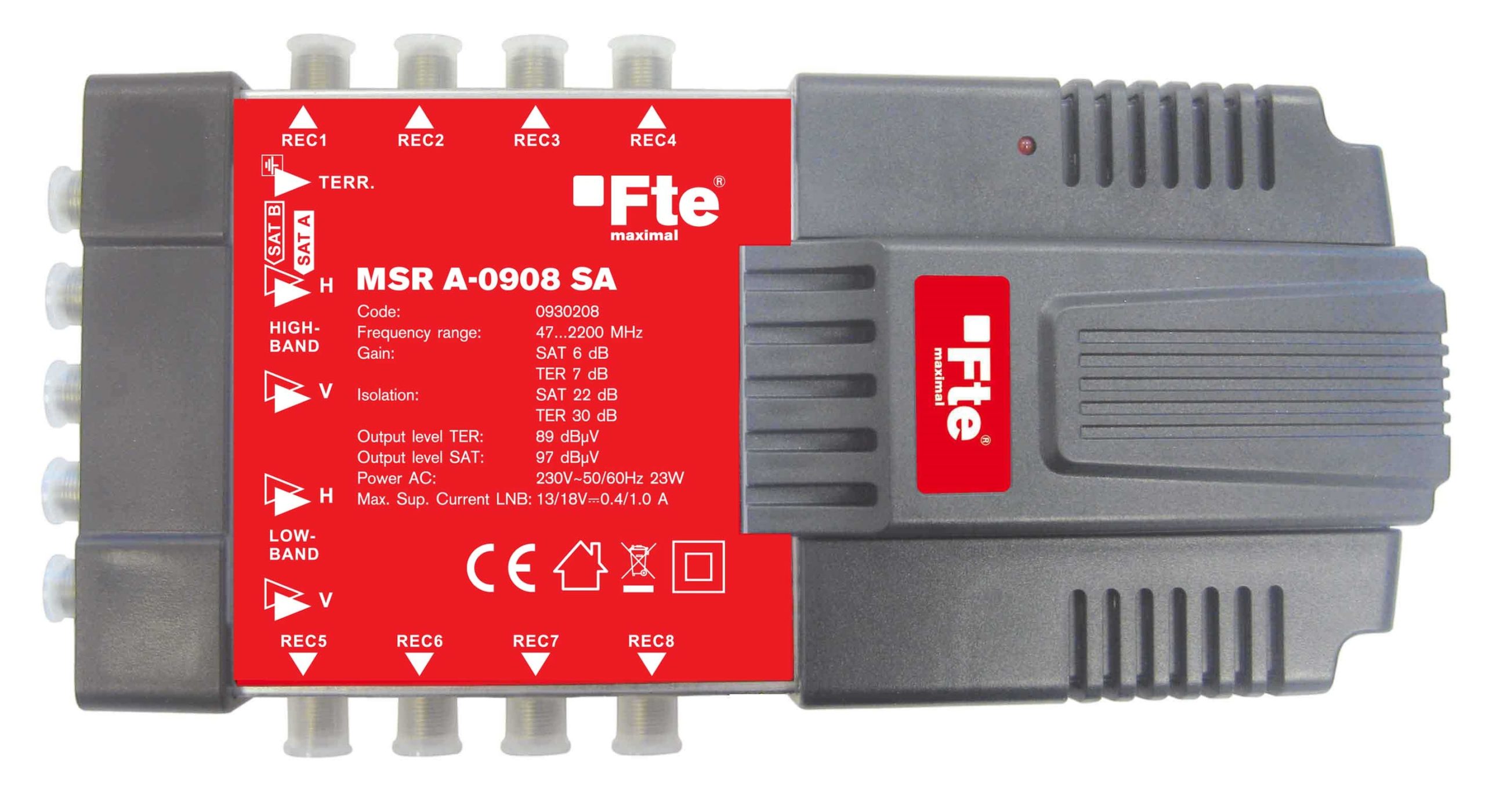

FTE MSRA0908 9/8 Active Sat/Ter Multiswitch

• Number of inputs: 8 SAT, 1 TER
• Subscriber outputs: 8
• Connectors (F-con): female
• Frequency range (MHz): SAT 950-2200, TER 47-862
• Isolation: TER to SAT ≥ 30 dB, SAT to TER ≥ 28 dB
• Isolation cross polarisation H/V: ≥ 25 dB
• Isolation: out – out TER ≥30 dB, out – out SAT ≥ 22 dB
• Return loss: SAT inputs ≥ 10dB, SAT outputs ≥ 8dB, TER inputs ≥ 10dB, TER outputs ≥ 8dB
• Output level: SAT (IMD- 35 dB) 97 dBμV, TER (IMD- 60 dB) 89 dBμV
• Impedance input/output: 75 Ohm
• Max current to LNB: 13 VDC: 400 mA / 18 VDC: 1000 mA
• Mains: ~230V ± 15%, 50/60Hz, 23W
• Dimensions: 248x129x64 mm
