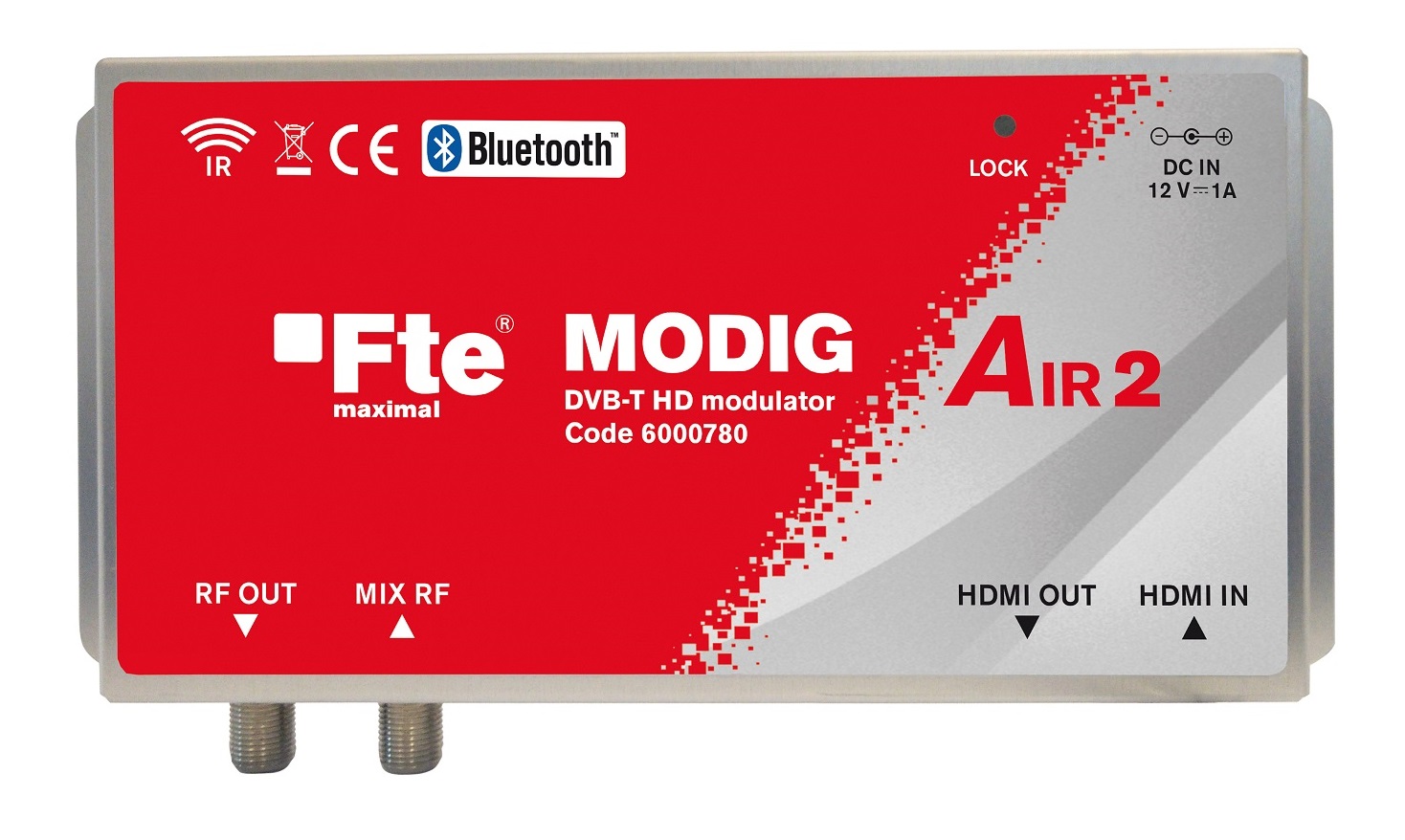

FTE MODIG AIR 2 Full HD Modulator Loop & Bluetooth

• Input: 1 x HDMI Type A
• Video encoder: MPEG-4 AVC  / H.264
• Video bit rate: 1-19 Mb/s adjustable
• Audio bit rate : 64, 96, 128, 192, 256, 320, 384 Kbps
• Transport Stream configurable parameters: Video PID, Audio PID, PMT PID, TS IF, ONID, NID, Service name, Service ID, Providor Name
• LCN support: Yes
• Standard: DVB-T (COFDM) EN 300 744
• Bandwidth: 5, 6, 7, 8 MHz
• Mode: 2K, 8K
• Output frequencies: 174-230MHz / 470-862 MHz
• Output level: 90±2 dBµV
• MER: 35 dB (Typical)
• Programming interface: Via Bluetooth Requires Version 4.0 and above
• Voltage supply: +12 Vdc
• Current consumption: 290 mA
• External power supply: 100-230Vca-0.5A /12Vdc-2A

6000780

21080
