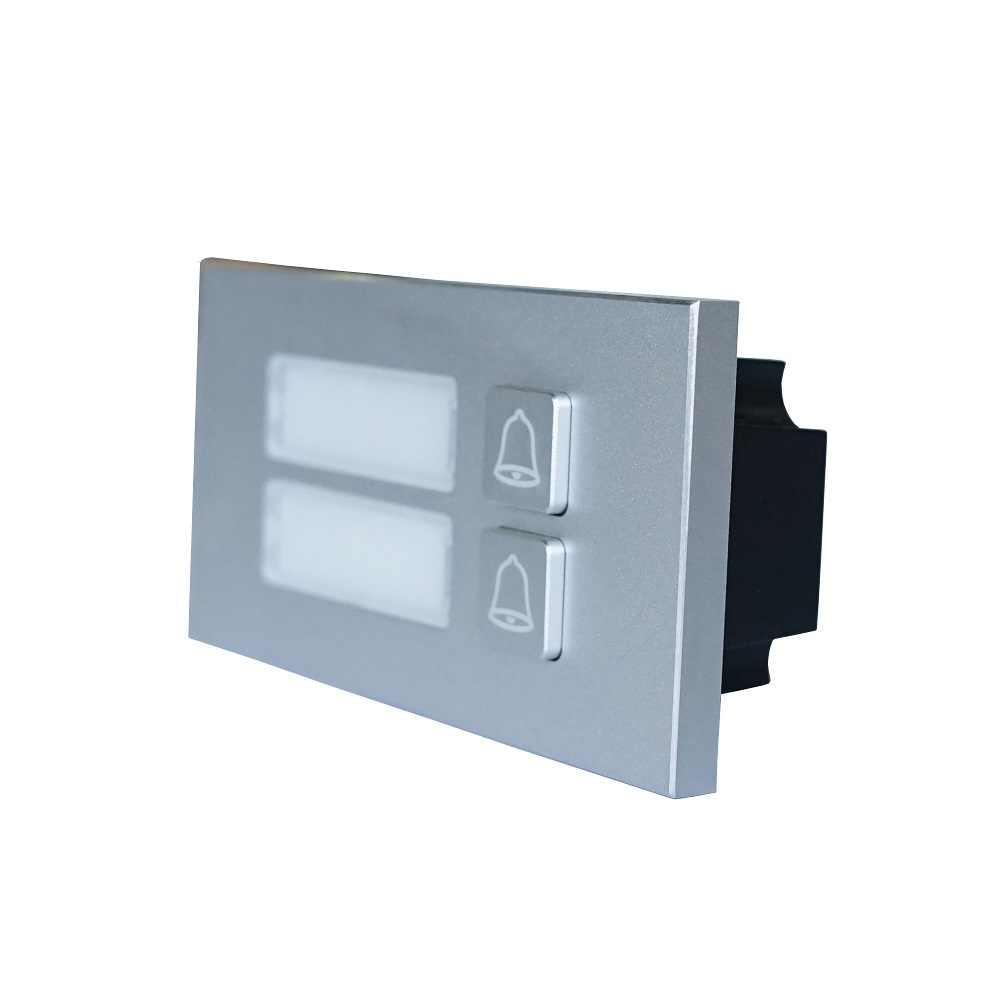

Dahua VD IP Modular Two Button VTO4202F-MB2

System

• Model :  DHI-VTO4202F-MB2
• Main Processor : Embedded Processor
• Button Type : Mechanical

Performance

• Casing Material : Aluminum alloy

Port

• Power Output : 5 VDC (provides power for other modules)

General

• Appearance Color : Silver
• Power Supply 5 VDC (provided by other modules)
• Installation Flush Mount / Surface Mount
• Product Dimensions 100 mm × 49.90 mm × 30.50 mm
• Protection IK07; IP65(silicone sealant is needed for installation)
• Operating Temperature –20 °C to +60 °C
• Operating Humidity 10%–90% (RH)
• Power Consumption ≤0.5 W
• Gross Weight 0.17 kg
