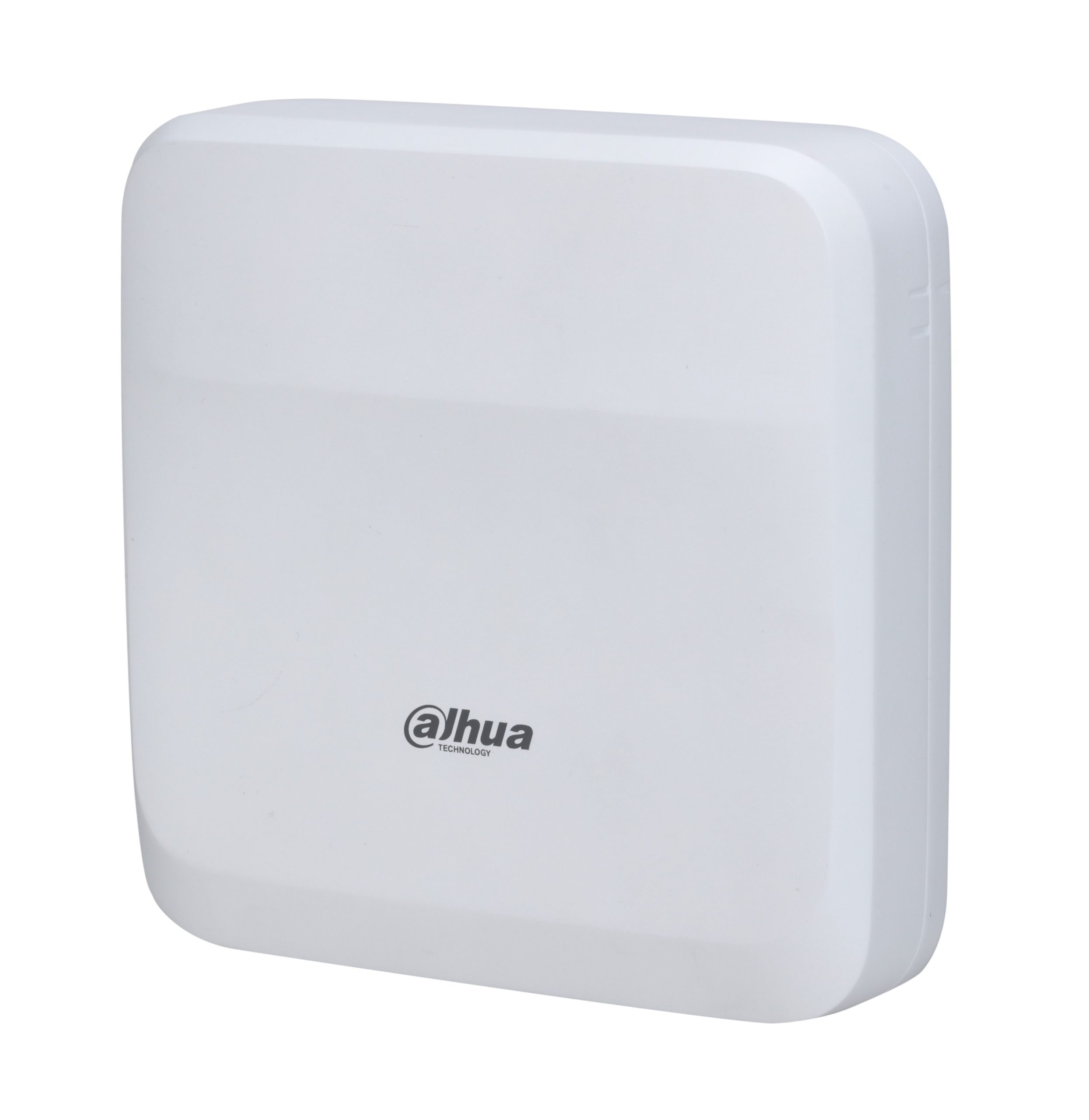

Dahua AC Elevator Controller ECC02

• Built of flame-retardant PC and ABS material, it is both sturdy and elegant with an IK06 rating.
• Supports TCP and IP connection, and standard PoE.
• Accesses readers through Wiegand (wiegand 34) and RS-485 protocols.
• Supports platform mode and standalone mode. You can perform configurations and management through DSS Pro in platform mode and through the webpage of the elevator controller in standalone mode.
• Platform mode: Supports 30,000 users, 30,000 cards or QR codes, 10,000 fingerprints, 30,000 passwords, and 300,000 records.
• Standalone mode: Supports 10,000 users, 10,000 cards, 10,000 fingerprints, 10,000 passwords, and 300,000 records.
• Offers multiple types of alarms such as the duress, tamper, blocklist for elevator controller, and offline alarms for the elevator control module.
• Up to 128 floors can be controlled through the elevator control  module, and up to 8 elevator call modules and 8 elevator control modules can be connected.
• Retains stored data even while powered off.
• Devices can also be updated through the webpage.
• Watchdog protects the system to allow the device to be stable and perform efficiently

ECC02

28243
