Cudy Switch PoE Gigabit 8PoE + 2GbE Uplink 120W GS1010P

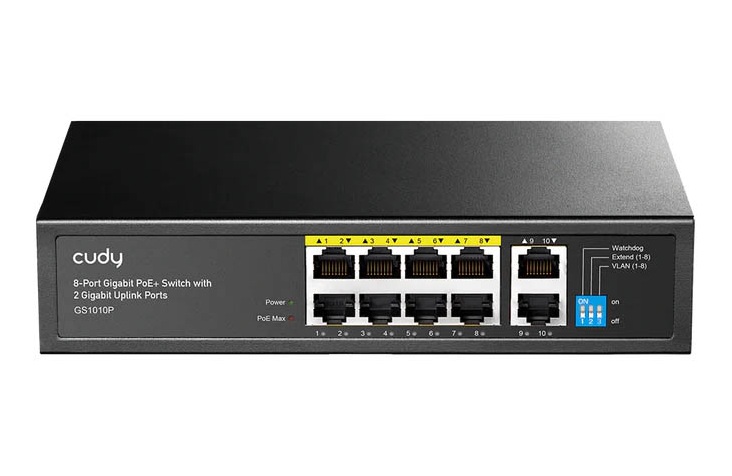

The Cudy GS1010P is a powerful 10-Port Gigabit PoE+ desktop switch designed to deliver high-capacity power and seamless data connectivity for modern IP surveillance networks, Wi-Fi deployment, and small business operations. Featuring 8 Gigabit PoE+ ports alongside 2 dedicated Gigabit uplink ports, it allows system integrators and retail customers to seamlessly connect high-power edge devices while maintaining an uncompromised, high-speed connection back to the core network or NVR system.

• High-Capacity Gigabit Power: Provides 8 × Gigabit Ethernet ports supporting IEEE 802.3at/af PoE+ standards, alongside 2 × dedicated Gigabit RJ45 uplink ports to prevent network bottlenecks.
• Robust 120W PoE Budget: Equipped with an integrated 120W power supply, distributing up to 30W of robust power per port to easily run demanding hardware like Wi-Fi Access Points, IP cameras, and VoIP systems.
• Intelligent PoE Auto Recovery: Features a built-in hardware Watchdog toggle switch that continuously monitors data transmission from connected devices; if a freeze is detected, it automatically restarts the unresponsive port.
• Long-Distance Extend Mode: Incorporates a manual Extend switch that lowers port transmission speeds to 10 Mbps while extending the deployment range of power and data up to 250 meters.
• Hardware VLAN Isolation: Includes a dedicated VLAN toggle option that completely isolates downlink ports from one another to minimize network congestion and prevent data leaks or unauthorized client-side hacking.
• Enterprise-Grade Protection: Engineered with a fanless, silent metal SPCC casing and premium copper alloy shielded ports that deliver up to 6kV air/contact ESD defense and 4kV surge protection.
